Building a 1921 Harley-Davidson Race Engine - Episode #8

December 6, 2012

Updated - February 13, 2014

By: David L. Morrill
@ Deadly Dave's Blog

Sylacauga, Alabama

This project started in 2010, when I visited the Wheels Through Time Museum in Maggie Valley, NC. The Motorcycle Cannonball Run cross country race, for pre-1916 bikes, stopped there. The visit allowed me to check out both the W.T.T. collection and the Cannonball entrants. The collection at Wheels Through Time is one of the finest collections of early motorcycles and memorabilia in the country.  It's a must visit for any motorcycle enthusiast:

http://www.wheelsthroughtime.com/ .

While examining their collection, I came across a very rare early racer. The bike in question is a 1921 Harley Davidson SCA (Single Cylinder Alcohol) serial #1 racer. Looking at this old racer, in as raced condition, most would ignore it in favor of the bright and shiny restored bikes. These rusty relics are often worth way more than the bright and shiny restored bikes. As they say, it's only original once!

1921 Harley Davidson SCA Factory Racer #1
Wheels Through Time Collection

In the early 1920's, the engine displacement for short tracks was reduced from 61ci (1000cc) to 30.5ci (500cc), in the interest of safety. As a result of the displacement change, the folks at the Harley-Davidson factory race shop looked around for a way to build a competitive 30.5ci single cylinder race motor. They realized they could remove one cylinder, piston, and rod from their existing 61ci V twin pocket valve race motor and get the 30.5 ci. single cylinder engine they needed.

1922 Harley-Davidson SCA Racer
Glenn Bator Collection

The pocket valve engines are also referred to as I.O.E. (intake over exhaust) engines having an overhead intake valve and a flat head style exhaust valve below it. This design allowed the intake valve to be quickly changed if a problem arose, which often happened with a one-piece cast-iron cylinder and head.

1921 SCA #1 Blanked Off Twin Racing Engine
Wheels Through Time Collection

As I examined the motor on the SCA racer, I realized it was not all that dissimilar to the 1921 Harley-Davidson Model J engine that was on my workbench at home. I decided it would be cool to try and build a replica racer that folks could see, hear, and touch. Building an exact copy was not in the cards. Harley-Davidson factory racing engines in this period used special early narrow engine cases bearing racing serial numbers. If you could find a set of cases, or any of the ultra-rare internal bits that made them so fast, the cost would be too high for my budget. Fortunately, the basic engine layout is very similar to the Model J production motor.

My 1921 Harley Model J V Twin Engine
Before Conversion to a Banked Off Single

When you do a project like this, there is a steep learning curve. First off, the oldest Harley motor I had worked on previously was from the mid 1950s. The engines from the early 1920s, are a very different animal. When I got back to my shop, I tore into my 1921 V twin motor and found the internals were in pretty good shape, considering its 90 years old. The one thing that was missing, were the piston rings. This engine was on display in a museum for many years, and the rings were probably removed to keep the cast iron cylinder and piston from rusting together. These early cast iron rings are rare and hard to find. I managed to pick up a junk 1918 Model J motor that just happened to have a good usable piston and rings that would work in my cylinder. Problem solved, or so I thought.

Turned out the piston used a later larger diameter wrist pin, which would require a shift to a later model drilled rod. These rods are slightly longer than the early rods, but that didn't present a problem. It does raise the compression slightly, by pushing the piston father up the bore, but the engine stroke remains the same. I had a set of these rods stashed away. The crankshaft would have to be disassembled, rebuilt for a single, and then rebalanced.

Crankshaft Modified for a Single

I contacted my friend Jim Haubert, who worked for the Harley-Davidson factory, and asked him to modify my crankshaft. We decided to use the rear forked connecting rod, and the race from the front rod, to contain the center roller bearings in the big end. When Jim got the replacement rod, he realized the pressed in big end bearing races needed to be replaced. He didn't have a fixture to safely replace the bearing races.



Front Cylinder Mockup

The rod was shipped to Steve McPhillips at Moroney's Harley-Davidson in New York. Steve builds XR-750 race engines for many of the top dirt track racers, so it took a while for him to get to my rod. While the crankshaft parts were touring the country, I started mocking up the empty engine cases in my frame. These blanked off motors were built using either a front or rear cylinder, depending on the rider's preference. I mocked it up both ways, but since the rear cylinder had a nice wrist pin gouge in the bore, I settled on the front cylinder set up.

When the crankshaft returned from Jim's shop, final assembly was pretty easy. I modified a set of rockers to just work on the front cylinder cam lobes and made a plate to cover the missing cylinder. George Hood sent me a prototype rocker tower, with a longer rocker. This setup lets the engine breathe a little better. The generator was modified, eliminating the armature. The timer points cam was modified to fire only on the front cylinder. The ignition is now powered by small 12-volt battery firing through a modern coil.

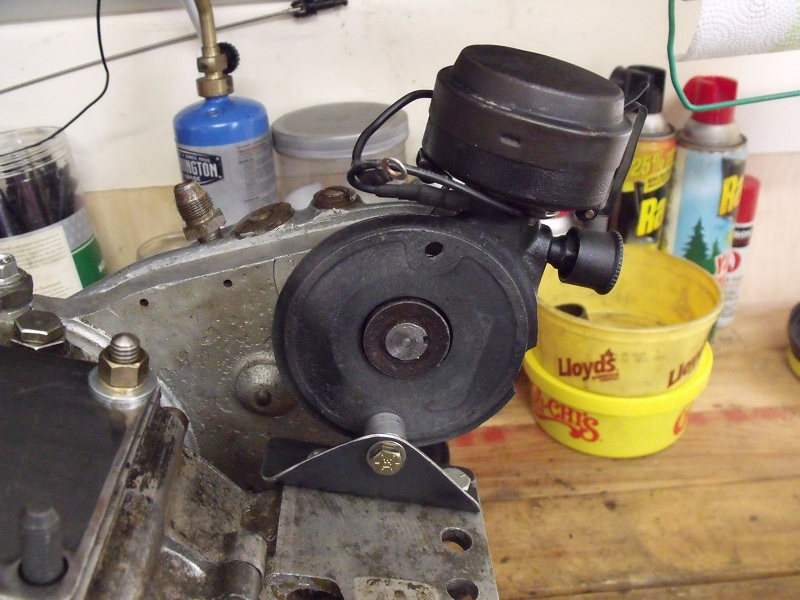

Modified Generator/Timer Case

Within a few weeks, I the engine installed in a street frame, and fired it up for the first time:

YouTube video of the initial start up:

http://www.youtube.com/watch?v=4MNOco-tX0Y

The next problem was the carburetor. I originally used a modified V twin intake, which had the carburetor come out on the right side of the engine. The original Model J twin cylinder engine used a one-inch bore Schebler carburetor. After the initial runs, I realized it needed to be changed to a smaller 3/4" bore Schebler. I found a guy, who had one, and we worked a trade.



Modified Intake & Ignition



The motor ran better with the smaller carburetor, but still had some problems running properly at full throttle. It was then I realized I had an intake air leak, where the carburetor intake attaches to the cylinder head. This is a common problem, and it took a little effort to fix. I turned a straight aluminum intake, and rubber mounted it to the cylinder. This is not period correct, but it allowed the motor to run better at all throttle setting.

I recently switched to a Linkert M741-1 carburetor from and Indian Jr. Scout. The Linkert features separate high and low speed adjustable needles, where the Schebler had only a single needle to adjust the fuel mixture at all throttle settings. This was a great improvement, that allows the engine to run well at both high, and low speed throttle setting.

Linkert 741-1 Carburetor with modified Rubber Mounted Intake

Stay tuned for Part 2
